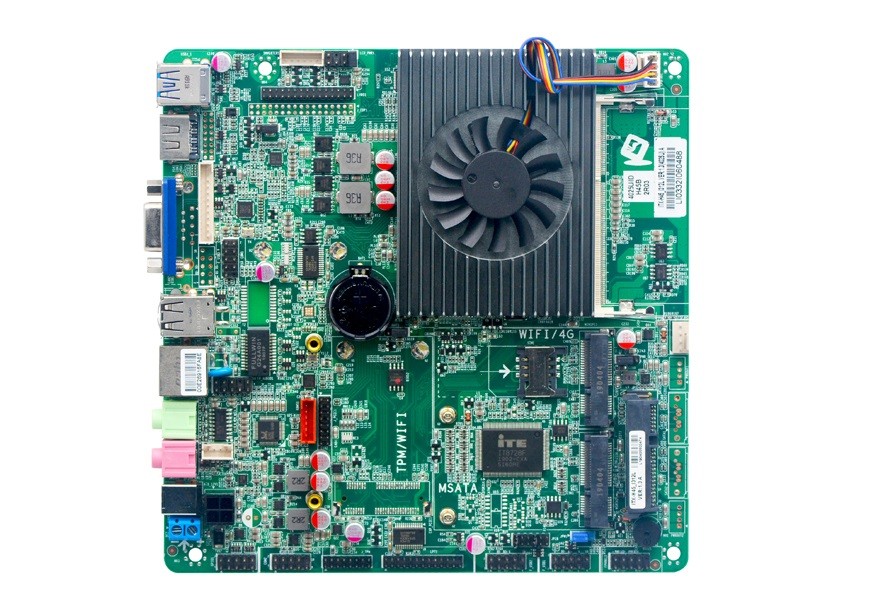

♦ Integrated Intel®Haswell-U I3-4025U/1.9GHz dual core processor

♦ Intel®Haswell-U/Broadwell-U SOC platform

♦ 1*SO DDRIII slot,support 1600/1333MHz DDR3L/1.35V memory.up to8GB

♦ Integrated Intel®HD Graphics4400

♦ 1* RTL8111H Gigabit Ethernet , support wake on LAN/PXE

♦ Provide 1*VGA,1*HDMI,1*LVDS(support dual channel 24BIT)

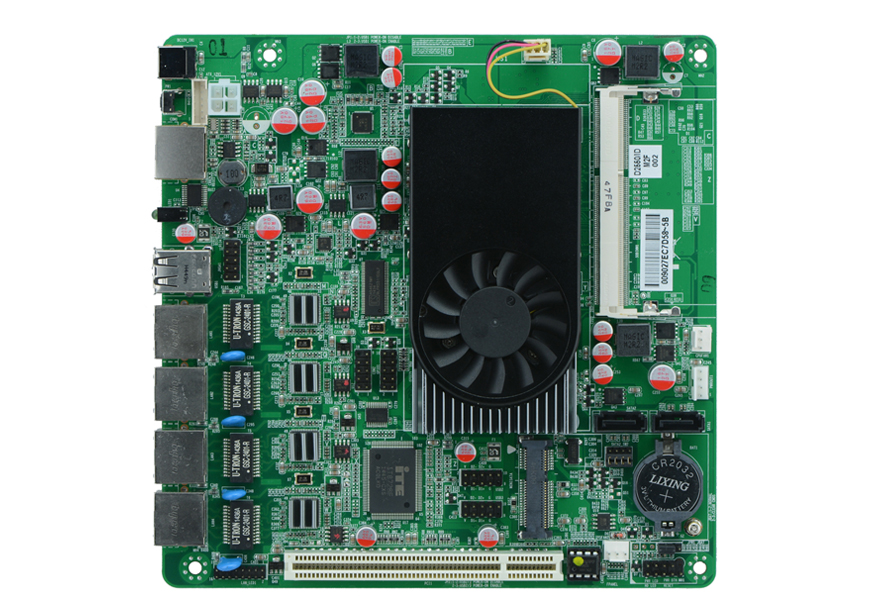

♦ Integrated Intel® Celeron J1900/4Cores/2.0GHz TDP10W

♦ Intel® Bay trail SOC

♦ 1*SO DDRIII,Only Support 1600/1333MHz DDR3L/1.35V Memory,Up to 8GB

♦ Integrated Intel®HD Graphics,1* VGA

♦ 4*82583V  Gigabit Ethernet ,support wake on LAN/PXE

♦ 4* USB2.0,1*RS232 serial port

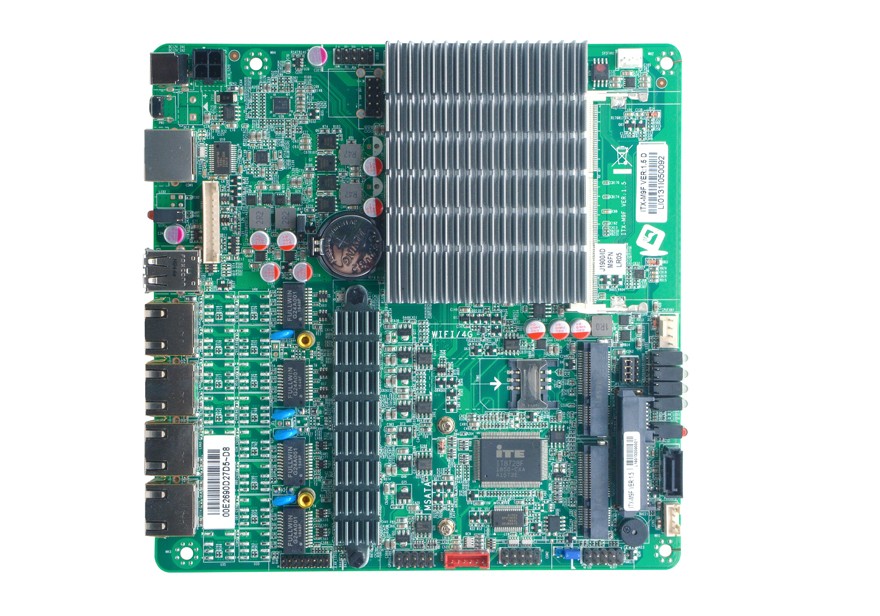

♦ Intel® Atom D2550 dual core processor(1.86GHz). ,TDP 10W

♦ 1* DDR3 SODIMM memory slot, support1066/800MHz memory, up to4GB.

♦ Intel® GMA3600 Graphics, support1*VGA display output.

♦ 4* Intel® 82583V Gigabit Ethernet,support wake on LAN/PXE

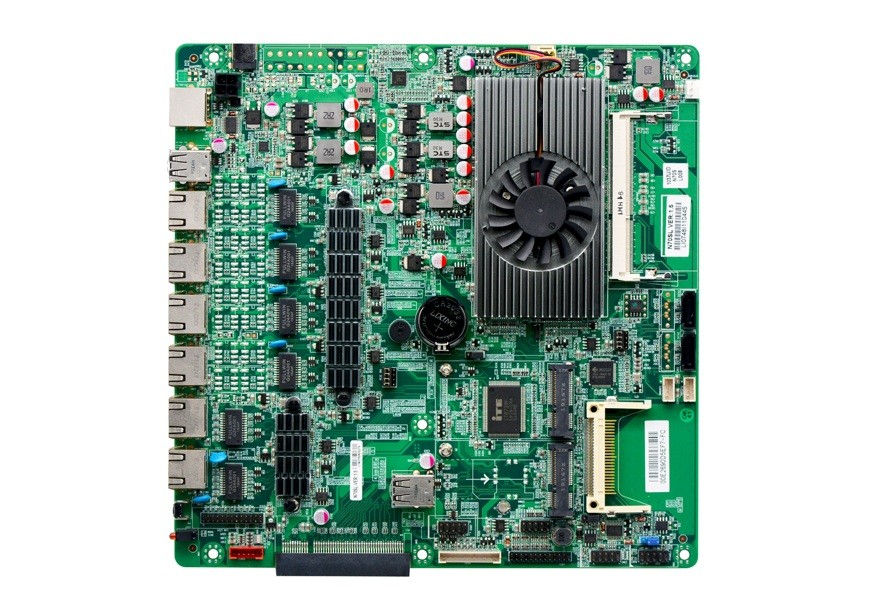

♦ Integrated Intel®1037U/1.80GHz Dual core processor,TDP 17W

♦ Intel® NM70 chipset

♦ 1*SO DDRIII,Support 1600/1333/1066MHz Memory ,Up to 8GB

♦ Integrated Intel®HD Graphics,1* VGA

♦ Integrated 6* Intel® 82583V Gigabit Ethernet ,support wake on LAN/PXE

♦ 6* USB2.0,2*RS232 serial ports

• Socket LGA1150 for Intel^® Core i7 / i5 / i3 / Celeron^® (Haswell)
• Intel^® H81 Chipset
• Integrated Intel^® HD Graphics Built-in Visuals
• Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
• 3 x COM (RS-232/422/485), 3 x COM (RS-232)
• 1 x VGA, 1 x HDMI, 1 x 24 bit Dual Channel LVDS
• 2 x USB 3.0, 8 x USB 2.0,2 x SATA3,2 x SATA2
• 1x mSATA, 1 x PCIE (x16),
• Gigabit LAN: 1 x Intel^® I210,LAN2: 1 x Intel^® I217V
• 1 x TPM Header

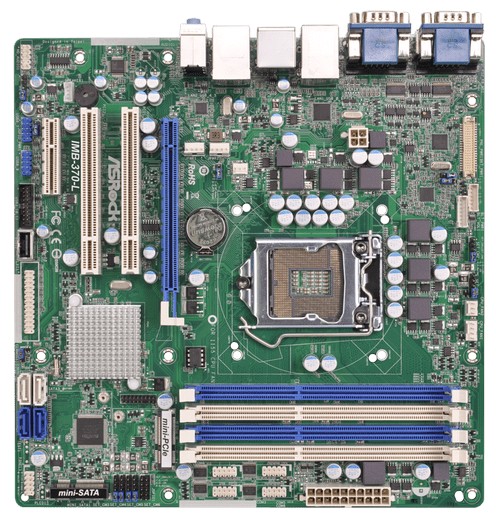

• Socket LGA1155 for Intel^® Core i7 / i5 / i3 / Celeron^® (Ivy Bridge and Sandy Bridge)
• Intel^® Q77 Express Chipset
• Integrated Intel^® HD Graphics Built-in Visuals
• Supports DDR3 1600MHz, 4 x Long-DIMM, up to 32GB system memory
• 2 x COM (RS-232/422/485), 4 x COM (RS-232)
• 1 x D-Sub, 1 x HDMI, 1 x Dual Channel 24-bit LVDS
• 2 x USB 3.0, 8 x USB 2.0, 2 x SATA3, 2 x SATA2
• 2 x PCI, 1 x Mini-PCIe, 1 x mSATA, 1 x PCIe x16, 1 x PCIe x4
• Gigabit LAN : 1 x Intel^® 82579LM, 1 x Intel^® 82583V
• 1 x TPM Header

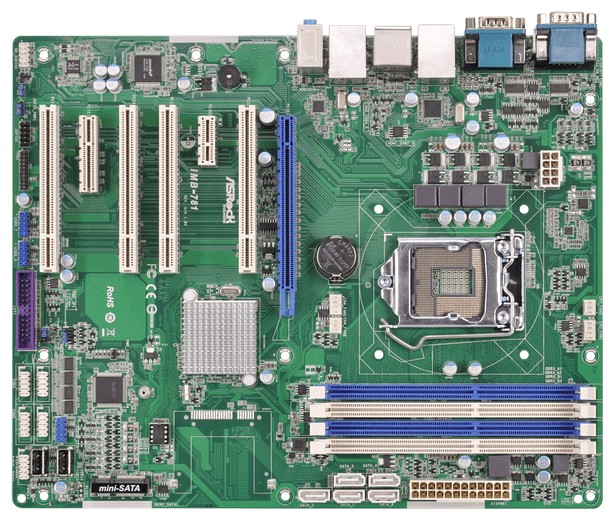

• Socket LGA1150 for Intel^® Core i7 / i5 / i3 / Celeron^® (Haswell)
• Intel^® Q87 Chipset
• Integrated Intel^® HD Graphics Built-in Visuals
• Supports DDR3 1600MHz, 4 x Long-DIMM, up to 32GB system memory
• 2 x COM (RS-232/422/485), 4 x COM (RS-232)
• 1 x D-Sub, 1 x HDMI, 1 x DisplayPort
• 4 x USB 3.0, 10 x USB 2.0, 5 x SATA3
• 4 x PCI, 1 x mSATA, 3 x PCIe (x16/x4/x1), 1 x CFast Card Socket (option)
• Gigabit LAN : 1 x Intel^® I217LM (with v-Pro support), 1 x Intel^® I210
• 1 x TPM Header

• Socket LGA1151 for Intel^® Core i7 / i5 / i3 / Celeron^® (Skylake-S)
• Intel^® Gen9 Intel^® Graphics DX 11/12, OGL4.3/4.4
• Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
• 3 x HDMI, 1 x Dual Channel 24-bit LVDS/eDP
• 4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3
• 1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
• Gigabit LAN : 2 x Intel^® Lan
• 1 x TPM Header
• 12V / 19~24V DC-in

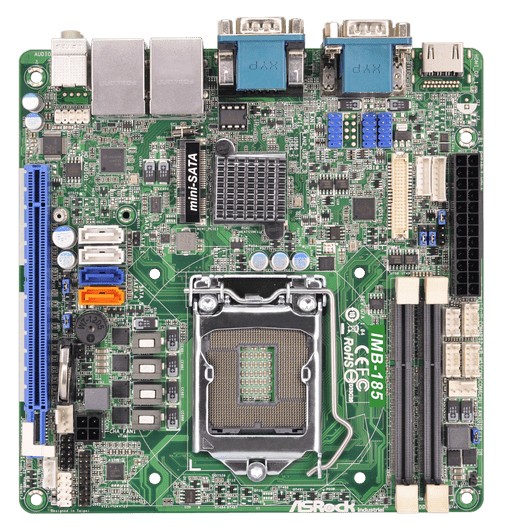

• Socket LGA1150 for Intel^® Core i7 / i5 / i3 / Celeron^® (Haswell)
• Intel^® Q87 Chipset
• Integrated Intel^® HD Graphics Built-in Visuals
• Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
• 1 x COM (RS-232/422/485), 3 x COM (RS-232)
• 1 x DVI, 1 x HDMI, 1 x 24 bit Dual Channel LVDS
• 2 x USB 3.0, 6 x USB 2.0, 2 x SATA3
• 1 x mini-PCIe, 1x mSATA, 1 x PCIE (x4)
• 1 x Intel^® I217LM (with v-Pro support)
• 1 x TPM Header

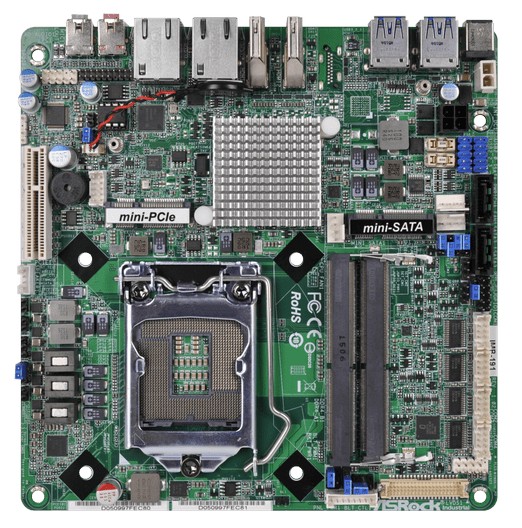

• Socket LGA1151 for Intel^® Core i7 / i5 / i3 / Celeron^® (Skylake-S)
• Intel^® Gen9 Intel^® Graphics DX 11/12, OGL4.3/4.4
• Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
• 2 x HDMI, 1 x Dual Channel 24-bit LVDS/eDP
• 4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3
• 1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
• Gigabit LAN : 2 x Intel^® Lan
• 1 x TPM Header
• 12V / 19~24V DC-in
