• Socket LGA1150 for Intel^® Core i7 / i5 / i3 / Celeron^® (Haswell)
• Intel^® Q87 Chipset
• Integrated Intel^® HD Graphics Built-in Visuals
• Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
• 1 x COM (RS-232/422/485), 3 x COM (RS-232)
• 1 x DVI, 1 x HDMI, 1 x 24 bit Dual Channel LVDS
• 2 x USB 3.0, 6 x USB 2.0, 2 x SATA3
• 1 x mini-PCIe, 1x mSATA, 1 x PCIE (x4)
• 1 x Intel^® I217LM (with v-Pro support)
• 1 x TPM Header

Form Factor

• Dimensions
  - Mini-ITX (6.7-in x 6.7-in)

Processor System

• CPU
  - Socket LGA1150 for Intel^® Core i7 / i5 / i3 / Celeron^® (Haswell)
• Core Number
  - (By CPU, Max 4)
• Max Speed
  - (By CPU)
• L3 Cache
  - (By CPU)
• Chipset
  - Q87
• BIOS
  - UEFI

Expansion Slot

• PCIe
  - 1 (x4)
• PCI
  - 0
• Mini-PCIe
  - 1 (Half Size + USB 2.0)
• mSATA
  - 1
• CFast Card Socket
  - 0

Memory

• Technology
  - Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
• Max.
  - 16GB
• Socket
  - 2 x SO-DIMM

Graphics

• Controller
  - Intel^® HD Graphics (By CPU)
• VRAM
  - Shared Memory
• VGA
  - Internal header (share with DVI)
• DVI
  - Supports max resolution up to 1920x1200
• LVDS
  - 1
• HDMI
  - Supports HDMI, supported with Level Shifter, resolution up to 4096x2304 (1 x HDMI)
• DisplayPort
  - 0
• MultiDisplay
  - Yes (three display)

Ethernet

• Ethernet
  - 10/100/1000 Mbps
• Controller
  - Intel^® I217LM
• Connector
  - 1 x RJ45

Storage

• Max Data Transfer Rate
  - SATA3 (6.0Gb/s)

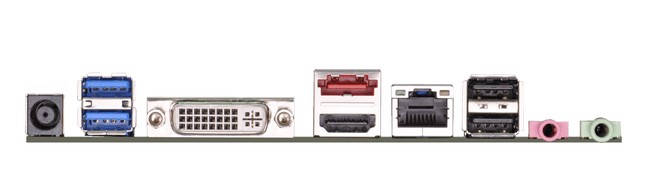

Rear I/O

• VGA
  - 0
• DVI
  - 1 (DVI-I)
• HDMI
  - 1
• DisplayPort
  - 0
• Ethernet
  - 1
• USB
  - 4 (2 x USB 3.0, 2 x USB 2.0)
• Audio
  - 2 (Mic-in, Line- out)
• Serial
  - 0
• eSATA
  - 1
• PS2
  - 0

Internal Connector

• USB
  - 4 (2 x USB Header 2.54mm pitch)
• LVDS / inverter
  - 24 bit dual channel LVDS
• VGA
  - 1
• Serial
  - 4 (1 x RS-232/422/485, 3 x RS-232)
• SATA
  - 2 x SATA3 (6.0Gb/s)
• mPCIe
  - 1
• Parallel
  - 0
• mSATA
  - 1
• IrDA
  - 0
• GPIO
  - 4 x GPI + 4 x GPO
• SATA PWR Output
  - 1
• Speaker Header
  - 1

Watchdog Timer

• Output
  - Output from super I/O to drag RESETCON#
• Interval
  - 256 Segments, 0, 1, 2, ...255sec/min

Power Requirements

• Input PWR
  - DC 12-19 input
• Power On
  AT/ATX Supported
  - AT : Directly PWR on as power input ready
  - ATX : Press button to PWR on after power input ready

Environment

• Temperature
  - 0ºC – 60ºC
• Storage Temp
  - -40° C – 85° C
• Operating Humidity
  - 5% ~ 90%
• Storage Humidity
  - 5% ~ 90%

Others

• Ordering Information
  - IMB-184(90-PXG1Z0-A0UAYZ, Gift package) : IMB-184 with Socket LGA 1151, Intel^® Q87 Chipset, Triple Display

  *The P/N is set up for gift package only. If you want to order bulk package please contact with your regional sales manager or local distributor.
• Packing List
  - 1 x Jumper setting guide
  - 1 x Driver DVD
  - 2 x IO shield
  - 2 x COM cable
  - 2 x SATA cable
  - 1 x SATA power cable
  - 2 x Screw for mini card
