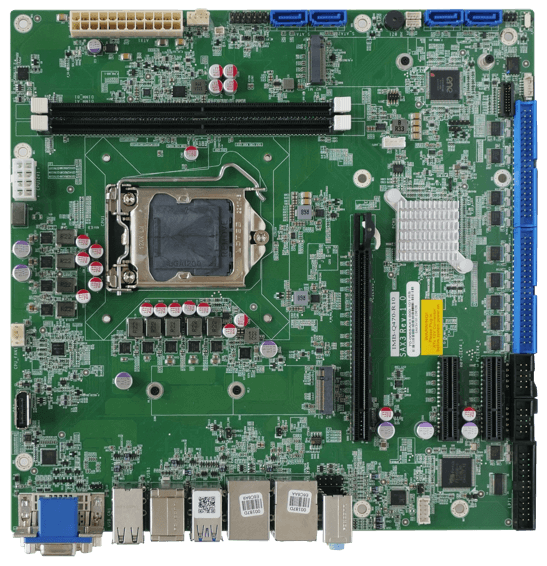

» LGA1200 Intel® 10th/11th Generation Core i9/i7/i5/i3, Pentium and Celeron processor (up to 125W)

» Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)

» Support triple independent display via DVI, VGA and internal DP++

» Support one PCIe x16 and two PCIe x4 expansions

» Support one M.2 B key, one M.2 M key and four SATA for storage

● 6th generation LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
● Dual-channel DDR4 2133MHz support up to 64GB
● Support Dual displays via VGA/DVI-I/LVDS
● USB 3.0 and SATA 6Gb/s supported
● 12 COM & 12 USB
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
● Dual-channel DDR3 1600/1333 MHz supported
● Intel® PCIe GbE with Intel® AMT 9.0 support
● Support triple display via HDMI, DVI, VGA and iDP
● Support PCI Express generation 3.0 at 8GT/s I/O bandwidth
● USB 3.0 and SATA 6Gb/s supported
● IEI jumper-less function
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
● Support IPMI 2.0 via iRIS-2400 module

● LGA1155 Intel® Core™ i7/i5/i3 processor supported
● Dual-channel DDR3 1600/1333 MHz supports up to 32 GB
● Intel® PCIe GbE with Intel® AMT 8.0 supported
● Supports 3 displays with 2 displays in combination of HDMI, DVI and VGA
● Supports PCI Express generation 3.0 at 8GT/s I/O bandwidth
● USB 3.0 and SATA 6Gb/s supported
● Supports multiple scalable serial ports
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
● Dual-channel DDR3 1333/1600 MHz support up to 16 GB
● Intel® HD Graphics technology integrates high-performance graphics and media processing
● Supports legacy PCI 32-bit 33/66 MHz
● Ten COM ports, USB 3.0 and SATA supported
● TPM V1.2 hardware security function supported by TPM module
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
● Support IPMI 2.0 via iRIS-2400 module
● IEI jumper-less function

● LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celecron® processor supported
● Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
● Intel® HD Graphics technology integrates high-performance graphics and media processing
● TMP V1.2 hardware security provided by the TPM module
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported
● Up to 32 GB 1333 MHz dual-channel DDR3 SDRAM
● Intel® PCIe GbE with Intel® AMT 7.0 support
● USB 3.0 and SATA 6Gb/s supported
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● Support for the next-generation 45nm Intel® Core™2 processor family with faster system performance
● Intel® GMA X4500 delivers an excellent blend of graphics performance
● Integrated VGA and PCIe x16 SDVO add-on card for dual display
● Diverse I/O interfaces, including 10 COM ports, four SATA 3Gb/s ports
● Support dual-channel DDR3 SDRAM DIMM up to 8 GB (max.)
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● microATX and RoHS compliant
● Supports LGA775 Intel® Core™2 Quad, Core™2 Duo, 45 nm processor with a 1333/1066/800 MHz FSB
● Intel® Q35 & ICH9DO platform
● Six SATA 3Gb/s with Intel® Matrix Storage Technology supported
● TPM1.2 IT security solution supported
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
