• Socket LGA1151 for Intel^® Core i7 / i5 / i3 / Celeron^® (Skylake-S)
• Intel^® Gen9 Intel^® Graphics DX 11/12, OGL4.3/4.4
• Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
• 2 x HDMI, 1 x Dual Channel 24-bit LVDS/eDP
• 4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3
• 1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
• Gigabit LAN : 2 x Intel^® Lan
• 1 x TPM Header
• 12V / 19~24V DC-in

Form Factor

• Dimensions
  - Mini-ITX (6.7-in x 6.7-in)

Processor System

• CPU
  - Socket LGA1151 for Intel^® Core i7 / i5 / i3 / Celeron^® (Skylake-S)
• Core Number
  - (By CPU, Max 4)
• Max Speed
  - (By CPU)
• L3 Cache
  - (By CPU)
• Chipset
  - H110
• BIOS
  - UEFI

Expansion Slot

• PCIe
  - 1 x PCIe x4 slot
• Mini-PCIe
  - 1 (1 x half size)
• mSATA
  - 1

Memory

• Technology
  - Dual Channel DDR4 2133 MHz SDRAM
• Max.
  - 32G
• Socket
  - 2 x SO-DIMM

Graphics

• Controller
  - Intel^® Gen9 Intel^® Graphics DX 11/12, OGL4.3/4.4
• VRAM
  - Shared Memory
• VGA
  - Supports max resolution up to 1920x1200
• DVI
  - No
• LVDS
  - Dual channel 24-bit co-lay with eDP, max resolution up to 1920x1200@60Hz
• HDMI
  - Supports HDMI, max resolution up to 4096x2160@30Hz
• DisplayPort
  - No
• MultiDisplay
  - Yes (Dual Display)

Ethernet

• Ethernet
  - 10/100/1000 Mbps
• Controller
  - 1 x Intel^® i210
  - 1 x Intel^® 219V
• Connector
  - 2 x RJ45

Storage

• Max Data Transfer Rate
  - SATA3 (6.0Gb/s)

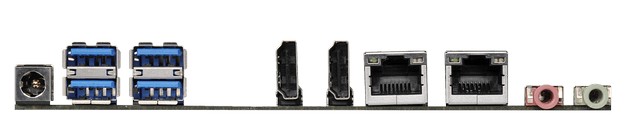

Rear I/O

• VGA
  - 0
• DVI
  - 0
• HDMI
  - 2
• DisplayPort
  - 0
• Ethernet
  - 2
• USB
  - 4 x USB 3.0
• Audio
  - 2 (Mic-in, Line-out)
• Serial
  - 0
• eSATA
  - 0
• PS2
  - 0

Internal Connector

• USB
  - 4 (2 x 2.54 pitch header USB 2.0 compliant)
• LVDS / inverter
  - 1/1
• VGA
  - 1
• Serial
  - 4 x RS-232 (COM1, 2 support RS-232/422/485)
• SATA
  - 2 x SATA3 (6.0Gb/s)
• mPCIe
  - 1
• Parallel
  - 0
• mSATA
  - 1
• IrDA
  - 0
• GPIO
  - 4 x GPI + 4 x GPO
• SATA PWR Output
  - 1
• Speaker Header
  - 1

Watchdog Timer

• Output
  - From Super I/O to drag RESETCON#
• Interval
  - 256 Segments, 0, 1, 2, ...255sec/min

Power Requirements

• Input PWR
  - 12V / 19~24V DC-in (DC Jack / 4-pin ATX PWR Con)
• Power On
  - AT/ATX Supported
  - AT : Directly PWR on as power input ready
  - ATX : Press button to PWR on after power input ready

Environment

• Temperature
  - 0ºC – 60ºC
• Storage Temp
  - -40° C – 85° C
• Operating Humidity
  - 5% ~ 90%
• Storage Humidity
  - 5% ~ 90%
