IMBA-C2160 [ KC인증 ]
[KC인증번호 : MSIP-REM-iei-IMBA-C2160]
ATX motherboard supports 22nm LGA1155 Intel® Xeon® E3/Intel® Core™ i3 CPU with Intel® C216
ATX motherboard supports 22nm LGA1155 Intel® Xeon® E3/Intel® Core™ i3 CPU with Intel® C216
● LGA1155 Xeon® E3 and Intel® Core™ i3 processor supported
● Dual-channel DDR3 1600/1333 MHz supports up to 32 GB
● Intel® PCIe GbE with Intel® AMT 8.0 supported
● Supports PCI Express generation 3.0 at 8GT/s I/O bandwidth
● USB 3.0 and SATA 6Gb/s supported
● High speed interface usage for two PCIe x8/two PCIe x4 add-on cards

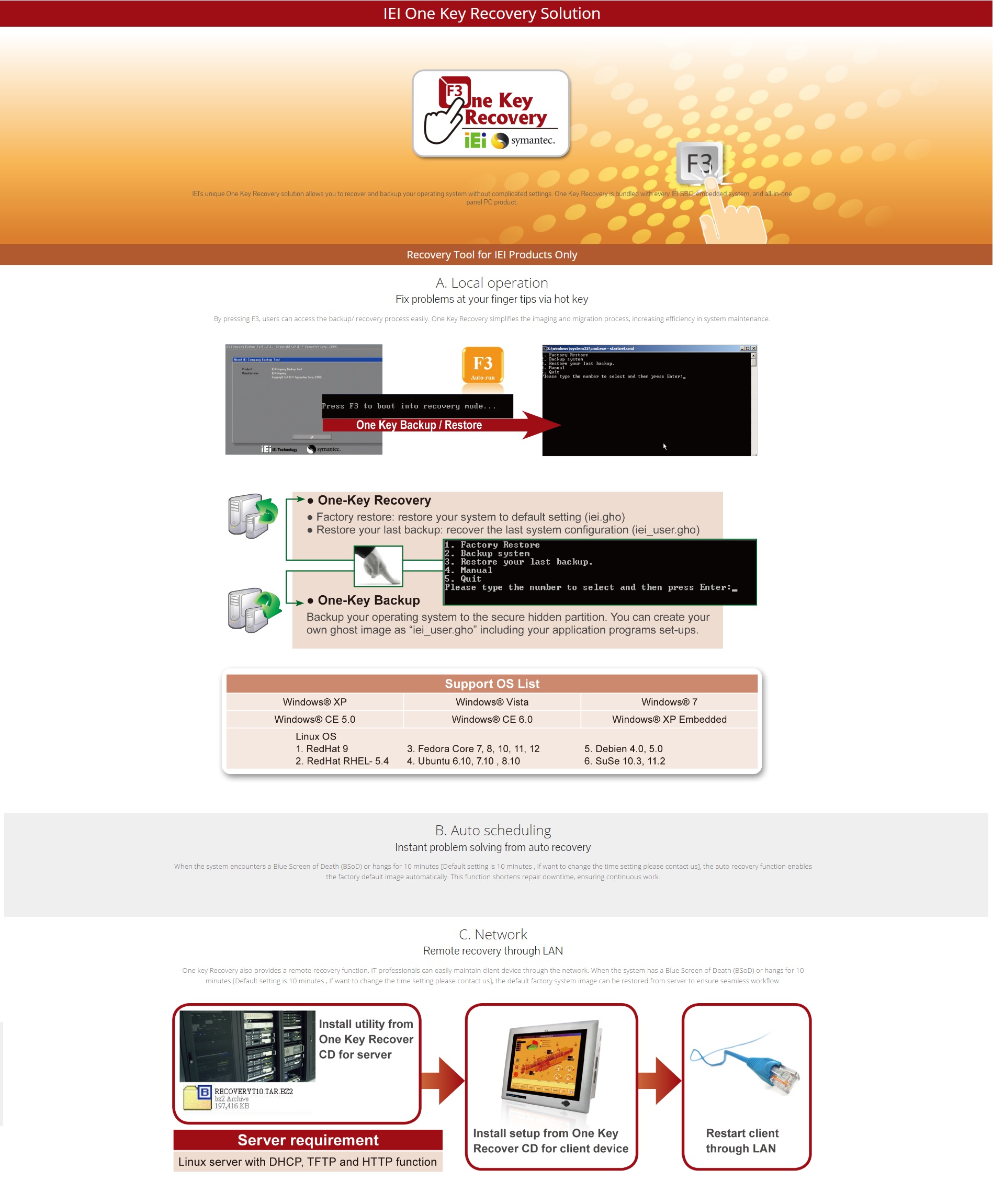

● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
| Spec Item | Description | |
|---|---|---|
| Display | Display | Dual display supported 1 x VGA |
| System | CPU | Intel® XeonR E3, Core™ i3 processor |
| Chipset | Intel® C216 | |
| Memory Max. | Four 240-pin 1600/1333MHz dual-channel DDR3 SDRAM ECC and non-ECC unbuffered DIMMs supported (system max. 32GB) |
|
| Storage | 2 x SATA 6Gb/s (RAID 0/1/5/10 support) 4 x SATA 3Gb/s |
|
| CPU Socket | LGA1155 | |
| I/O Interface | Ethernet | LAN1: Intel® 82579 PHY with Intel® AMT 8.0 supported LAN2: Intel® 82574L PCIe controller |
| Digital I/O | 8-bit digital I/O (4-bit input/4-bit output) | |
| Audio | Realtek ALC662 HD Audio Codec | |
| I/O Interface | 5 x RS-232 1 x RS-422/485 4 x USB 3.0 10 x USB 2.0 1 x LPT 1 x 4-pin wafer for SMBus 1 x 4-pin wafer for I2C 1 x PS/2 KB/MS 1 x 6-pin wafer for PS/2 KB/MS 1 x TPM connector (2x10 pin) |
|
| Power | Power consumption | 3.3V@1.55A, 5V@3,43A, Vcore@3.12A, 12V@0.20A, 5VSB@0.18A (Intel® XeonR 2.2GHz CPU with two 1333MHz 4GB DDR3 memory) |
| Environment | Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) |
| Humidity | 5% ~ 95%, non-condensing | |
| Option | iRIS | |
| Expansion Slots | Expansion Slots | 2 x PCIe x16 (share 1 PCIe x 16 signal) 2 x PCIe x4 1 x PCIe x1 2 x PCI |
| FSB | FSB | |
| Watchdog Timer | Watchdog Timer | Software programmable and supports 1~255 sec. system reset |
| CPU Cooler | CPU Cooler | CF-1156A-RS-R11 (for 1U chassis)/ CF-1156C-RS/ CF-1156D-RS/ CF-1156E-R11 |
| I/O Interface | I/O Interface | 4 x Internal RS-232 |
| 1 x Internal RS-422/485 | ||
| 6 x Internal USB 2.0 | ||
| 2 x LAN LED | ||
| 1 x LPT | ||
| 1 x RS-422/485 | ||
| 1 x SMBus | ||
| 4 x USB 2.0 | ||
| 1 x I2C | ||
| 4 x USB 3.0 | ||
| 1 x KB/MS | ||
| Item No. | Description |
|---|---|
| IMBA-C2160-R10 | ATX Motherboard supports 22nm LGA1155 Intel Xeon E3/ Intel Core i3 CPU per Intel C216,DDR3,VGA,Dual Intel PCIe GbE,USB 3.0,SATA 6Gb/s,HD Audio and RoHS |
