Industrial PC
» Ultra-Compact Industrial Mini PC Fanless system
» Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
» Onboard LPDDR4x 8G (up to 16GB)
» M.2 for expansion
» Four USB 3.2 Gen2 (10Gb/s) ports
» Two 2.5GbE LAN ports
| SBC Form Factor | ● CPU: Intel® Celeron® J6412 2GHz (up to 2.6 GHz, quad-core, TDP 10W) ● Chipset: SoC ● System Memory: LPDDR4x on board 8GB (up to 16G) ● Power: DC Jack: 12 V DC Consumption: +12V@3.6A (Intel® Celeron® J6412 with 8GB memory) |

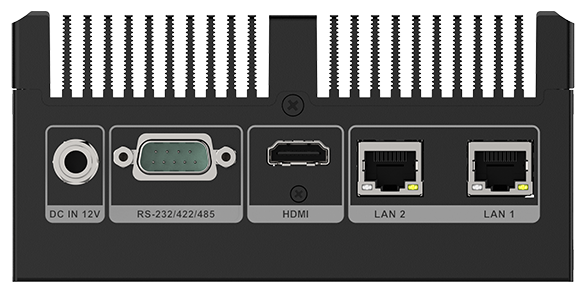

| I/O Ports | ● USB: 4 x USB 3.2 Gen2 2 x USB 2.0 (optional)(USB expansion is applicable only when 2.5-inch hard disk is not installed) ● Ethernet: 2 x RJ-45 2.5 GbE by I225V controller ● Display: 1 x HDMI 1.4b (up to 4k@ 30Hz) ● COM Port: 1 x RS-232/422/485 (DB9) 1 x RS-232 (optional) ● TPM: Support Intel PTT ● Wireless/Bluetooth: 1 x 802.11a/b/g/n/ac (M.2 A Key optional) ● Watchdog Timer: Programmable 1 ~ 255 sec/min |
| Expansion Slots | ● M.2: 1 x 2230 A-key (PCIe Gen3 x1/ USB2.0) 1 x 2280 M-key (PCIe Gen3 x2) |
| Cooling method / System Fan | Fanless |
| Drive Bays | 1 x 2.5” SATA 6Gb/s HDD/SSD bay |

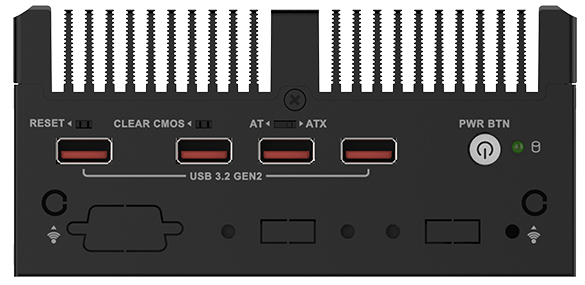

| Buttons | 1 x Power button(with LED) 1 x Reset button 1 x AT/ATX switch 1 x Clear CMOS Button |
| Indicators | 1 x Power LED 1 x HDD LED |
| Construction | Extruded aluminum alloy |
| Color | Black C |
| Dimensions | 137 x 102.8 x 65.8 |
| Weight | 0.97KG /1.74KG |
| Operating Temperature | -10°C ~ 50°C with air flow (M.2) |
| Humidity | 10% ~ 95% non-condensing |
| Operating Vibration | 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD) |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Safety & EMC | CE / FCC / UKCA compliant |
| OS Support | Microsoft® Windows® 10/11, Linux |
| uIBX-260-EHL-W10IoT21-E-R10 | OS Image with Windows® 10 Enterprise Entry 64-bit 2021 LTSC for uIBX-260-EHL Series, with DVD-ROM, RoHS |
|---|---|
| uIBX-260-EHL-JC-R10 | Fanless embedded system with Intel® Celeron® J6412 2.0GHz (up to 2.6 GHz, Quad Core, TDP 10W), on board 8GB LPDDR4x memory, 1 x RS-232/422/485, 4 x USB 3.2, 1 x HDMI™, 2 x 2.5GbE Lan, 12V DC, RoHS |
Options
| EMB-WIFI-KIT02I3-R10 | 2T2R M.2 wifi module kit for embedded system, IEEEE802.11a/b/g/n/ac/ax, 1 x M.2 AE Key Wireless LAN & Bluetooth 5.2;Intel;AX210.NGWG Module, 2 x RF cable , 2 x Antenna; RoHs |
|---|---|
| 32205-008000-100-RS | FLAT CABLE;RS-232/422/485;2;250mm;28AWG;(A)D-SUB 9P MALE,BLUE;(B)MOLEX 51021-0900 P=1.25;Wins Precision;C24230217-0;RoHS |
| 32001-008600-200-RS | ROUND CABLE;USB CABLE;3;210mm;28AWG;(A)USB A TYPE 4PIN FEMALE *2;(B)DU PONT 2*4P P=2.0 FEMALE;ONE PCS PKG W/ LABEL;WITH 4PCS SCREWS,32000-070301-RS SUBSTITUTE;Wins Precision;RoHS |
