Industrial PC
•Supports 8th Generation Intel® Processors (LGA1151)
•Intel H310 chipset
•VGA/DP+HDMI
•4 x LAN, 2 x COM
•2 x SO-DIMM DDR4
|
Model No. |
DN-H310DH |
|
Processor |
Supports 8th Generation Intel® Core Processors (LGA1151) |
| Chipset |
Intel H310 chipset |
|
Memory |
2*DDR4-2400MHz SO-DIMM Max. Capacity 64GB |
|
Graphics |
Intel® UHD Graphics (based on CPU) Max. 2560 x 1600 @60Hz |
| Audio |
Realtek ALC662-VD0 Audio out & Mic in Combo |
| Ethernet |
2* Intel I211aT, 10/100/1000Mbps Gigabit Ethernet, Wake-on-LAN support |
|
Storage |
1* SATA 3.0 1* mSATA |
|
Expansion slots |
PCIe x4 1 x M.2 2230 Support Wifi+BT 1 x Full height mSATA |
|

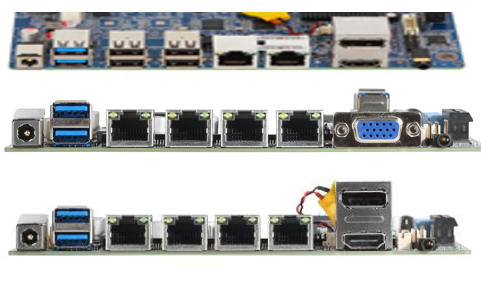

Rear Panel |
1* DC-IN |
|
2* USB 3.0 |
|
|
2* USB 2.0 |
|
|
2* LAN |
|
|
1* DP |
|
|
1* HDMI |
|
|
1 *Audio Out& Mic in Combo |
|
|
Front Panel |
1* Power Button |
|
2* USB3.0 |
|
| Internal I/O |
2 x 2x5Pin USB2.0 expend to 4 x USB2.0 |
|
2 x 2x5Pin COM head (2.0mm) |
|
|
2 RS232/485 option Pin 2x3 2.54mm COM Option |
|
|
1 x 4pin SPDIF Audio |
|
|
1 x HDMI head |
|
|
2 x 4pin (2.0mm) SATA Power |
|
|
2 x 9Pin 2.54mm Front Panel |
|
|
1 x 3Pin Auto Power On |
|
|
2x6 2.54mm GPIO |
|
|
1x2 2.54mm Chassis Instruction |
|
|
2x5Pin 2.54mm TPM |
|
|
ATX 4Pin Power |
|
|
1 x CPU Fan, 1 x System Fan |
|
| Support 4-in 4-out GPIO | |
|
OS |
Windows 10 64Bit, Linux |
|
Function |
Watchdog, Auto Power On |
| Power |
DC-IN 12-19V |
|
Cooling |
Fan |
|
Dimension |
170 x 170 mm |
| Operating Temp. |
0~60℃ at 0.7m/s air flow |
|
Storage Temp. |
-20~75℃ |
|
Humidity |
95%@40℃ (non-condensing) |
