TANK-XM810 [ KC인증 ]

[KC인증번호 : R-R-iei-TANK-XM810]

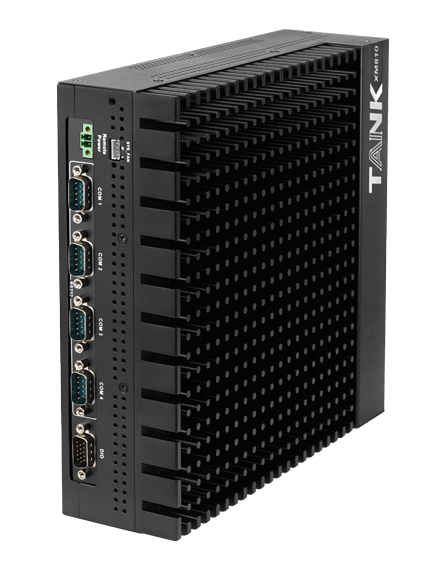

High-Performance 10 th / 11 th Generation Intel® Core™ Processor Fanless Embedded Computer
DATASHEET LIST

» Supported CPUs:

Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)

Intel® Core™ i5-10500 3.1 GHz (up to 4.5 GHz, 6-core, 65W TDP)

Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)

Intel® Core™ i7-10700E 2.9 GHz (up to 4.5 GHz, 8-core, 65W TDP)

Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)

» 2 x 2.5GbE ports

» Multiple USB ports and serial ports

» Multiple internal expansion boards for flexible selection

» Various optional backplanes and chassis

» CE/FCC compliant

Hardware Spec.

Form factor
SBC Form Factor
  •  CPU
    10/11 th Gen Intel® Core™ CPU 35/65W

    Intel® Core™ i3-10100TE 2.3 GHz (up to 3.6 GHz, quad-core, 35W TDP)

    Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)

    Intel® Core™ i5-10500 3.1 GHz (up to 4.5 GHz, 6-core, 65W TDP)

    Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)

    Intel® Core™ i7-10700E 2.9 GHz (up to 4.5 GHz, 8-core, 65W TDP)

    Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)

    Chipset: Q470/Q470E

    System Memory: 2 x SO-DIMM DDR4 2933 MHz (up to 64GB)

    Power:

  • DC Jack: 12 V~28 V DC

    Terminal Block: 12 V~28 V DC

    Consumption: 12V @ 8A (Intel ® Core™ i9-10900TE with 8GB memory)

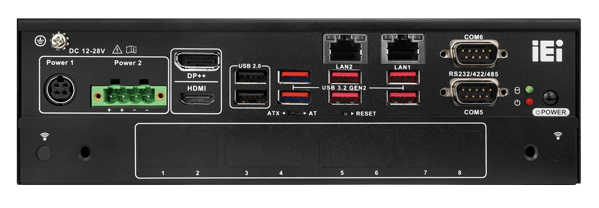

I/O Interface
I/O Ports
  • USB:

    6 x USB 3.2 Gen 2

    2 x USB 2.0

    Ethernet:

    2 x RJ-45:

    2 x 2.5 GbE by Intel® I226V (colay I226LM)

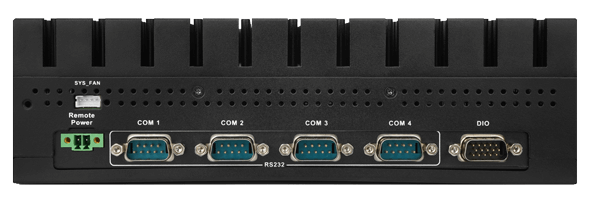

    COM Port:

    2 x RS-232/422/485 4 x RS-232

    Digital I/O:

    12-bit Digital I/O (6-in/ 6-out)

    Display:

    1 x HDMI™

    1 x DP++

    TPM:

    Support Intel PTT

    Watchdog Timer:

    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  •  M.2:
    2 x 2280 M-key (PCle x2) bay (RAID 0/1 support)
  •  Backplane:
    Optional
System
Cooling method / System Fan Fanless
4-pin external system fan connector
Drive Bays 1 x 2.5＂ SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x Power button
1 x Reset button
1 x AT/ATX switch
Indicators 1 x Power LED (green)
1 x HDD LED (yellow)
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black
Dimensions
Dimensions 230.6 x 256.04 x 76.2
Weight
Weight 3.2/3.5 kg
Environment
Operating Temperature -20°C ~ 60°C with air flow (CPU TDP35W & SSD)
-20°C ~ 50°C with air flow (CPU TDP65W & SSD)
Humidity 10% ~ 95% non-condensing
Operating Vibration Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Operating Shock MIL-STD-810G 514.6C-1 (SSD)
Safety & EMC CE/FCC compliant
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux
TANK-XM810-i7BC-R12

Ruggedized Fanless Embedded System with Intel® i7-10700E 2.9GHz, (up to 4.5GHz, 8-core, TDP 65W),

8GB DDR4 pre-installed memory, 1xHDMI, 1xDP++, 12~28V DC and RoHS
TANK-XM810-i7AC-R12

Ruggedized Fanless Embedded System with Intel® i7-10700TE 2.0GHz, (up to 4.4GHz, 8-core, TDP 35W),

8GB DDR4 pre-installed memory, 1xHDMI, 1xDP++, 12~28V DC and RoHS
TANK-XM810-i5BC-R12

Ruggedized Fanless Embedded System with Intel® i5-10500 3.1GHz, (up to 4.5GHz, 6-core, TDP 65W),

8GB DDR4 pre-installed memory, 1xHDMI, 1xDP++, 12~28V DC and RoHS
TANK-XM810-i5AC-R12

Ruggedized Fanless Embedded System with Intel® i5-10500TE 2.3GHz, (up to 3.7GHz, 6-core, TDP 35W),

8GB DDR4 pre-installed memory, 1xHDMI, 1xDP++, 12~28V DC and RoHS
TANK-XM810-i3BC-R12

Ruggedized Fanless Embedded System with Intel® i3-10320 3.8GHz, (up to 4.6GHz, 4-core, TDP 65W),

8GB DDR4 pre-installed memory, 1xHDMI, 1xDP++, 12~28V DC and RoHS
TANK-XM810-i3AC-R12

Ruggedized Fanless Embedded System with Intel® i3-10100TE 2.3GHz, (up to 3.6GHz, 4-core, TDP 35W),

8GB DDR4 pre-installed memory, 1xHDMI, 1xDP++, 12~28V DC and RoHS
