Ai Solution
» 5 x Google Edge TPU ML accelerator
» 20 TOPS peak performance (int8)
» Host interface PCIe Gen2 x 4
» Low-profile PCIe form factor
» Support Multiple card
» Approximate 15W
» RoHS compliants
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Low-profile PCIe card |
| System | |
| CPU | 5 x Google Coral Edge TPU |
| Cooling method / System Fan | Active Fan |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 167.64 (L) x 64.41 (W) x 18 (H) |
| Environment | |
| Operating Temperature | -20°C ~ 55°C |
| Humidity | 5% ~ 90% RH, Non-condensing |
| Certifications | |
| Safety & EMC | RoHS |

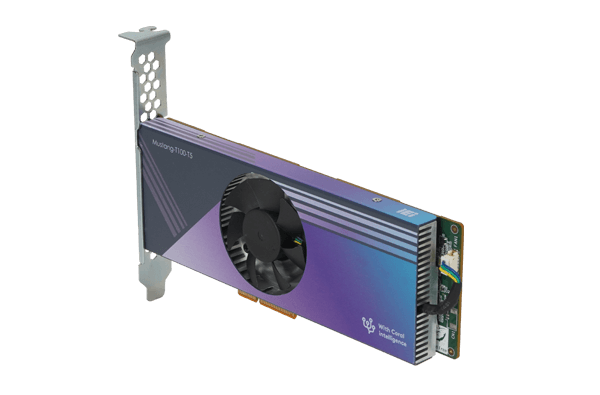

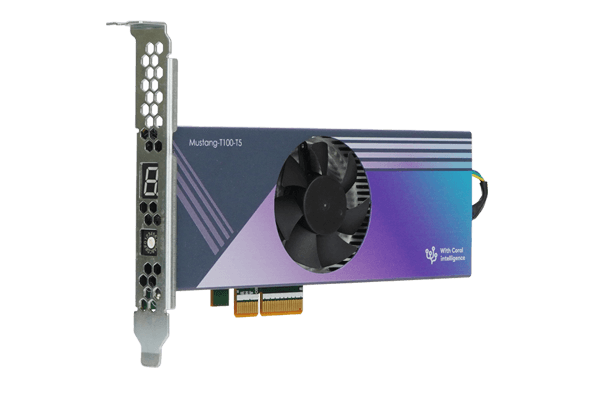

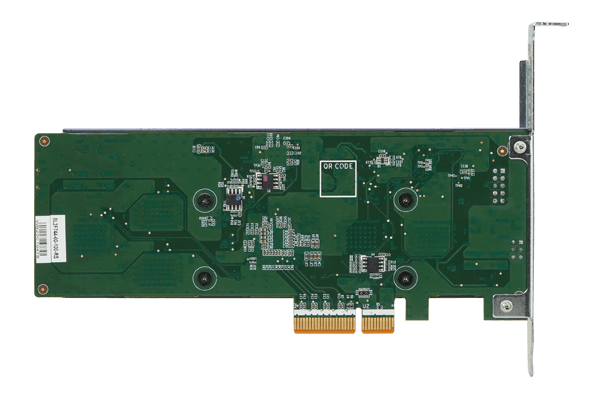

| Mustang-T100-T5-R10 | Computing Accelerator Card with 5 x Google Coral edge TPU, PCIe gen2 x4 interface, RoHS |
|---|
