PUZZLE-M901 [ KC인증 ]
[KC인증번호 : R-R-iei-Puzzle-M901]

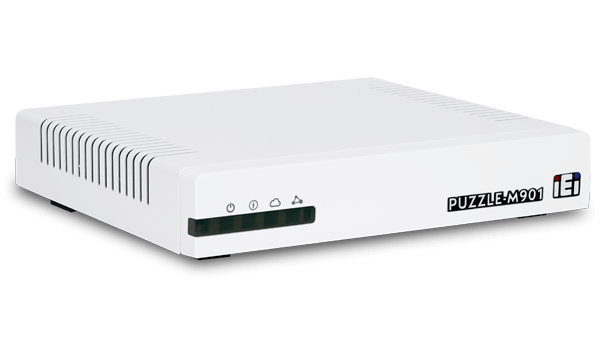

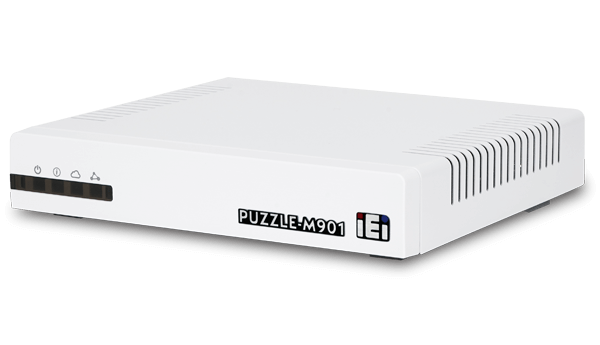

OpenWrt Network Appliance with Marvell® CN9130 Processor, up to 6 x2.5 GbE on Board with 1 x eMMC 4GB
OpenWrt Network Appliance with Marvell® CN9130 Processor, up to 6 x2.5 GbE on Board with 1 x eMMC 4GB
• Marvell® CN9130 quad-core Armv8 Cortex-A72 @ up to 2200 MHz
• Onboard 4GB DDR4

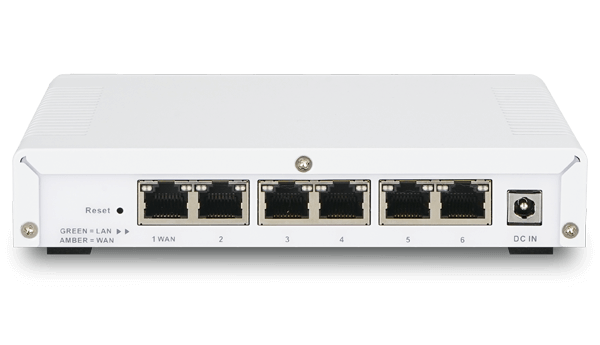

• Six 2.5GbE RJ-45 ports (three via Marvell CN9130; three via Marvell 88F8215)
• 4 GB eMMC; one console port (pin-header); one reset button
• LED indicators: status/power & WAN/LAN interface indicator
• Pre-installed OpenWrt
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | Desktop |
| System | |
| CPU | Marvell® CN9130 quad-core Armv8 Cortex-A72 @ up to 2200 MHz |
| Memory | System: 4G |
| Cooling method / System Fan | Active Fan |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 166.4 x 145.7 x 34 |
| Storage | |
| Storage | 1 x M.2(NGFF) : 2242 M key M.2 PCIe Gen. 3 x2 |
| 1 x eMMC : onboard 4 GB | |
| I/O Interface | |
| Ethernet | 6 x LAN : 1 x 2.5GbE LAN integrated in CPU via PHY Aquantia AQR112R 1 x 2.5GbE LAN integrated in CPU via PHY Aquantia AQR112C 1 x 2.5GbE LAN integrated in CPU via PHY Aquantia AQR112 1 x 2.5GbE LAN via Marvell 88F8215 (PHY: Aquantia AQR112R) 1 x 2.5GbE LAN via Marvell 88F8215 (PHY: Aquantia AQR112C) 1 x 2.5GbE LAN via Marvell 88F8215 (PHY: Aquantia AQR112) |
| I/O Interface | 1 x External USB 3.2 Gen1x1 |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 75°C (-4°F ~ 167°F) |
| Humidity | 5~95% non-condensing, wet bulb: 27˚C |
| Certifications | |
| Safety & EMC | CE/FCC/BSMI (BSMI safety)/VCCI, LVD |
| OS Support | |
| OS Support | OpenWrt |
| PUZZLE-M901-CN1-R10 | Desktop Network Appliance with Marvell CN9130 Processor ,6 x 2.5GbE on Board 4GB eMMC & 1x M.2 slot, RoHS |
|---|
