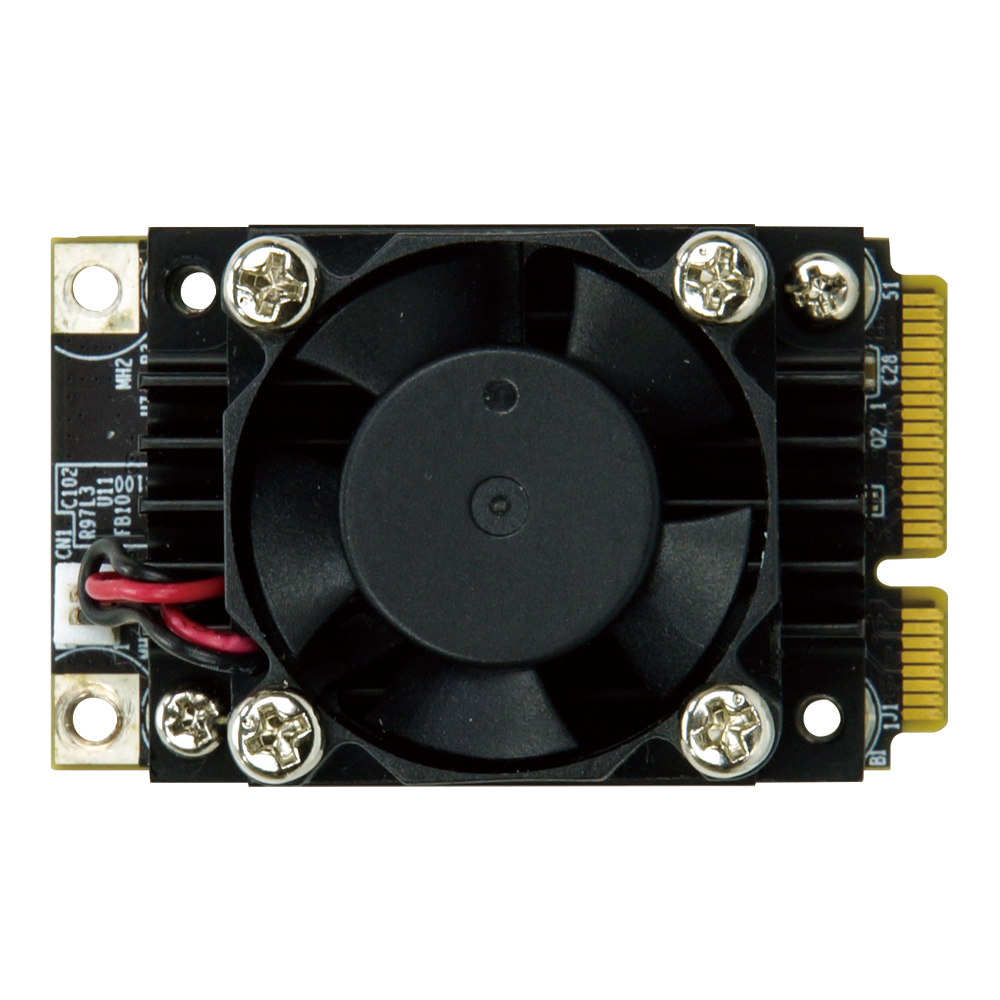

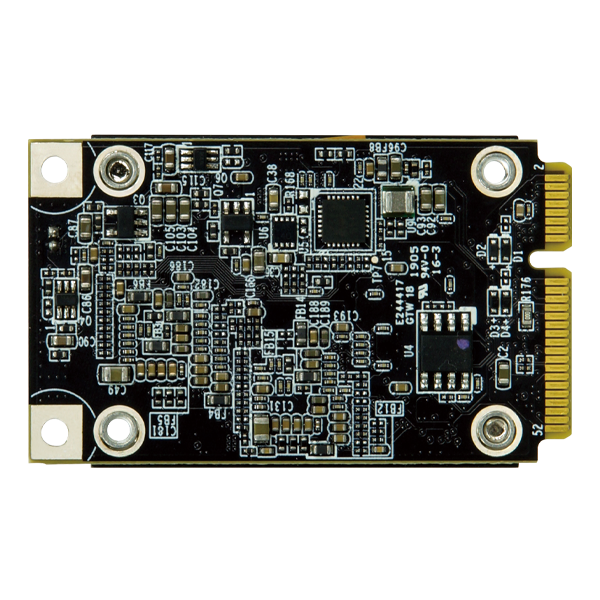

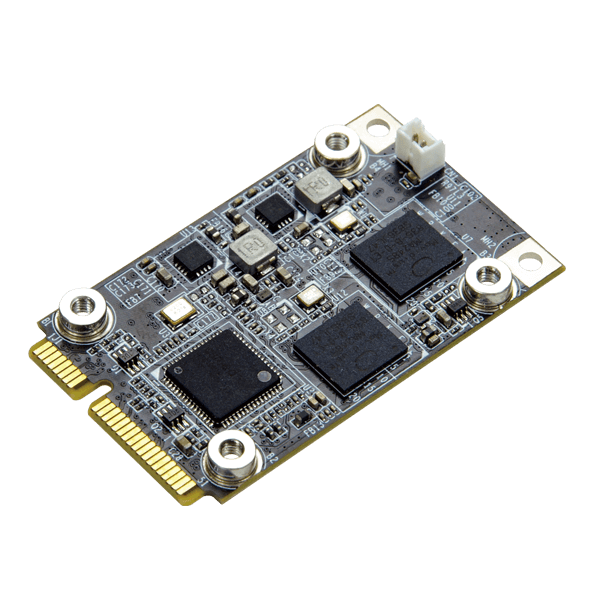

Mustang-MPCIE-MX2 [ KC인증 ]
Computing accelerator card with two Intel® Movidius™ Myriad™ X VPU, providing an flexible AI inference solution
● miniPCIe form factor (30 x 50 mm)
● 2 x Intel® Movidius™ Myriad™ X VPU MA2485
● Power efficiency ,approximate 7.5W
● Operating Temperature -20°C~60°C
● Powered by Intel’s OpenVINO™ toolkit
| Spec Item | Description |
|---|---|
| Form factor | |
| Form factor | miniPCIe |
| System | |
| Chipset | 2 x Intel® Movidius™ Myriad™ X MA2485 VPU |
| Memory Max. | 1G on board DDR4 |
| Supported OS | Ubuntu 16.04.3 LTS 64-bit, CentOS 7.4 64-bit Windows® 10 64 bit |
| Power | |
| Power consumption | Approximate 7.5W |
| Environment | |
| Operating Temperature | -20~60°C |
| Safety & EMC | CE FCC |
| Humidity | 5~90°C |
| Dimensions | |
| Dimensions | 50.5x30 mm |
| Card Slot Interface | |
| PCIe | miniPCIe |
| Item No. | Description |
|---|---|
| Mustang-MPCIE-MX2-R10 | Deep learning inference accelerating miniPCIe card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, miniPCIe interface 30mmx50mm, RoHS |
