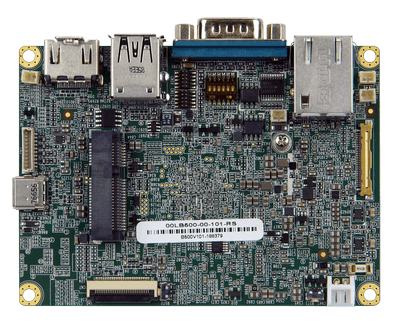

HYPER-RK39 [ SAMPLE ]

PICO-ITX SBC with Rockchip RK3399 Processor, 2GB LPDDR3, 16GB eMMC Flash, HDMI, eDP, GbE LAN, PCIe mini, USB 3.0, USB 2.0, COM, RoHS
DATASHEET LIST

  • ● Pico-ITX SBC supports Rockchip RK3399

    ● HDMI and eDP dual display support

    ● OS: Android 7.1 & Ubuntu 16.04

  • Hardware Spec.

    Spec Item Description
    Dimensions
    Dimensions 100mm x 72mm
    Display
    Display Output 1 x HDMI out
    1 x eDP port
    Environment
    Humidity 10% ~ 95%, non-condensing
    Operating Temperature -10°C ~ 50°C with air flow
    Safety & EMC CE/FCC compliant
    Storage Temperature -20°C ~ 60°C
    Form factor
    Form factor Pico-ITX SBC supports Rockchip RK3399
    HDMI and eDP dual display suppot
    OS: Android 7.1 & Ubuntu 16.04
    I/O Interface
    Audio I/F 1 x 2 pin for speaker (2W)
    1 x 10 pin (Mic in / Line out)
    Display Port 1 x HDMI out
    1 x eDP port
    Ethernet 1 x GbE RJ45 by RTL8211E
    Expansion 1 x Full-size PCIe Mini (reserved for WWAN)
    GPIO 8 bit GPIO (4 in / 4 out)
    I/O Interface 1 x USB 3.0 Type A
    1 x USB 2.0 Type A
    1 x USB 3.0 Type-C (for OS update)
    I²C 1 x I²C
    Linux
    Linux Linux Ubuntu 16.04
    Power
    Power Jack 1 x 2 pin DC 12V in wafer connector
    System
    CPU Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
    Memory Max. 2GB LPDDR3-1866
    Storage 16GB eMMC NAND FLASH
    Supported OS Android 7.1 or Linux Ubuntu 16.04
    Watchdog Timer
    Watchdog Timer YES
    Weight
    Weight 80 g

  • Ordering Info.

    Item No. Description
    HYPER-RK39-R10 PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, RoHS
    HYPER-RK39-R10-CN PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi CN reg, ROHS
    HYPER-RK39-R10-EU PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi EU reg, ROHS
    HYPER-RK39-R10-TW PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi TW reg, ROHS
    HYPER-RK39-R10-U PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Ubuntu 16.04, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, RoHS
    HYPER-RK39-R10-U-CN PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Ubuntu 16.04, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi CN reg, ROHS
    HYPER-RK39-R10-U-EU PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Ubuntu 16.04, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi EU reg, ROHS
    HYPER-RK39-R10-US PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi US reg, ROHS
    HYPER-RK39-R10-U-TW PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Ubuntu 16.04, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi TW reg, ROHS
    HYPER-RK39-R10-U-US PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Ubuntu 16.04, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi US reg, ROHS

  • Package Contents

    • 1 x Hyper-RK single board

    • 1 x Two pin to DC in power cable

    • 1 x Heatsink set

    • 1 x RTC battery
