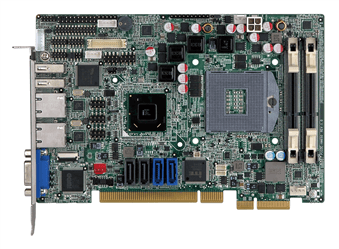

● Half-size PCIe CPU card supports Socket G2 32nm Intel® Core™ i7/i5/i3 or Celeron® processor
● Up to 16 GB 1333/1066 MHz dual-channel DDR3 SDRAM
● Supports 18/24-bit dual-channel LVDS and analog CRT output
● High-speed I/O interface provided through the 2nd gen PCIe add-on card and SATA 6Gb/s connectors
● Rich media acceleration for hardware encoding and decoding
● TPM V1.2 hardware security provided by the TPM module
● IEI One Key Recovery solution allows you to create raipd OS backup and recovery

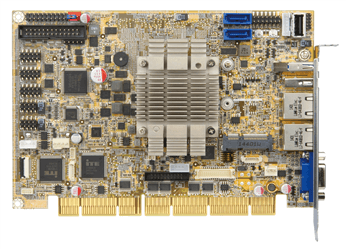

● Half-size PCISA CPU card supports Intel® 22nm Atom™ or Celeron® on-board SoC
● Supports dual LAN by Intel® I211-AT PCIe controllers
● Supports 1.35 V 1333/1066 MHz DDR3L SDRAM up to 8 GB
● Supports dual independent display with one analog CRT, iDP and one 24-bit dualchannel LVDS (optional)
● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and HD Audio support
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

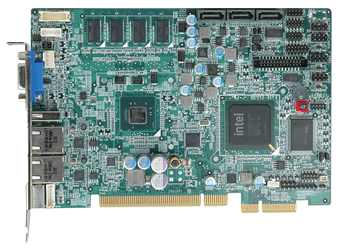

● PCISA CPU card supports PCI and ISA bus expansion
● Supports Intel® Atom™ D525/D425/N455 processor
● Supports VGA and 18-bit single-channel LVDS with dual display
● Supports 800 MHz DDR3 SDRAM SO-DIMM up to 4 GB for D525/D425 and 2 GB for N455
● Supports four COM, six USB 2.0, three SATA 3Gb/s, IDE and CF Type II
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

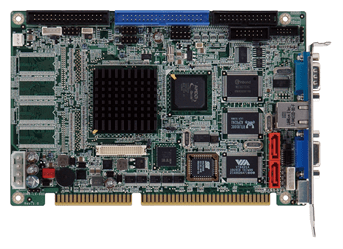

● ISA CPU card with on-board AMD Geode™ LX600 processor (366 MHz), 128KB L2 cache
● Flexible on-board DDR SDRAM and one SO-DIMM slot
● Enchanced TTL, RS-232, RS-422/485 and USB 2.0 interfaces for extened connectivities
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

• ● 11-Slot PICMG 1.3 PCIe to PCIe Switch (PLX PEX8724) Backplane,

  ● 6 PCIe Gen 3.0 x4 w/ x16 slot, 4 PCI, RoHS

14-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slot,12 PCIe x1,RoHS

7-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slots,3 PCIe x4,3 PCI,RoHS

6-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,5 PCIe x4,RoHS

4-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,2 PCIe x8 w/ x16 slots,1 PCIe x4,RoHS
