PCI-104 Module with on-board AMD Geode™ LX 800 CPU

AMD Geode™ LX 800 CPU on-board PC/104 Module

● Intel® Atom™ N455/D525 proccessor with DDR3 memory
● Single 5V power input design, 12V for LCD/fan
● Single-channel 18-bit LVDS/VGA output for display
● Support two COM, four USB, SATA 3Gb/s and CF Type II socket
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

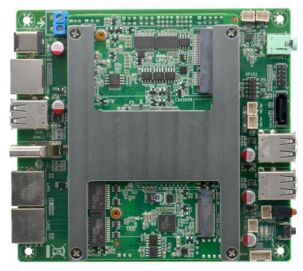

◆Onboard Intel® Celeron J3455 1.5GHz quad core processor，TDP10W

◆1*DDR3L SODIMM, support single channel1600/1866MHz 1.35V memory, max up to 8GB

◆Intel®HD Graphics 500
Support HDMI / LVDS display, HDMI is located on the baseboard
Support dual-screen same display, dual-screen different display

◆2* Realtek RTL8111H Gigabit Ethernet, support WOL /PXE function

• ● Pico-ITX SBC supports Rockchip RK3399

  ● HDMI and eDP dual display support

  ● OS: Android 7.1 & Ubuntu 16.04

● Pico-ITX form fator with AMD® Embedded G-Series SoC supports DDR3/DDR3L up to 1600 MHz memory
● 12V only single voltage design for AT/ATX power by DC power jack
● DVI-I and 18-bit singel-channel LVDS support for dual display
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● Pico-ITX SBC supports Intel® 22nm Atom™ or Celeron® on-board SoC
● 12V only single voltage design for AT/ATX power by DC power jack
● VGA and iDP support dual display
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● Pico-ITX SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC
● IEI jumper-less function
● Dual independent display support
● 1333/1600 MHz 1.35V DDR3L SDRAM up to 8 GB supported
● COM, USB 3.0, SATA 6Gb/s and Audio support
● 1 x M.2 B key slot for expansion possibility
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

• ● COM Express basic size Type 7 module

  ● Intel® Xeon® D and Pentium® D SoC (up to 16 cores)

  ● Up to 32GB dual channel DDR4 at 1866/2133/2400MHz ECC (dependent on SoC SKU)

  ● Two 10G Ethernet and NC-SI support

  ● Up to 32 PCIe lanes (24 x Gen3, 8 x Gen2)

  ● GbE, two SATA 6Gb/s, four USB 3.0/2.0

● Intel® 22nm Atom™ on-board SoC supported
● Type 10 connector pinout according to COM.0 R2.1
● Supports 2 GB 1066/1333 MHz DDR3L memory
● Optional soldered down 4 GB SSD
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery
● Support wide range operating temperature: -40°C to +85°C
