Industrial PC
-
Overview

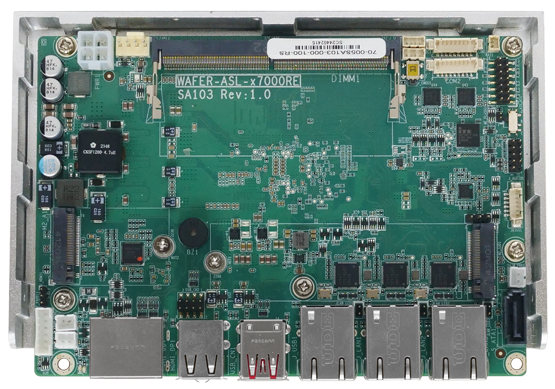

» 3.5” SBC supports Intel® Atom™ x7000 RE series on-board SoC
» One DDR5 4800 SO-DIMM, Up to 16GB
» Support 3 x 2.5GbE LAN with Intel® I226-IT
» Support M.2 M key and M.2 A key expansion
» Supports +12V~28V DC voltage input and -40°C~85°C wide temperature operating environment
-
Overview
● 3.5” SBC supports Intel® 8th generation Whiskey Lake processor with DDR4 SO-DIMMs
● Triple display with dual HDMI, LVDS selection
● M.2 A Key, PCIe Mini slot with mSATA spport
● COM, USB 3.1 Gen2, SATA 6Gb/s support
● Support temperature operation: -20°C ~ 60°C
-
Overview
●Intel 45nm mobile Core 2 Duo processor(Penryn) supported
●18/24-bit dual channel LVDS / Analog CRT / HDTV output/HDMI supported
●DDR2 800/667 MHz dual channel SDRAM supported up to 4 GB
●High quality media MPEG-2 decoding, WMV9(VC-1) and H.264 (AVC), DX10 supported
●Support 4x COM, 4x USB, 2x SATA II, 2x IEEE1394a -
Overview
◆Integrated Intel®J3160/1.6GHz quad core processor ,TDP:6W
◆Intel® Braswelll SOC platform
◆1* DDR3L SODIMM Memory slot，Support single channel 1600/1333MHz DDR3L/1.35V memory ,up to 8GB
◆Integrated Intel®HD Graphics ,1*VGA,1*HDMI,1*LVDS
◆2*Intel I211 Gigabit ethernet , support Wake on LAN/PXE Function
◆7* USB,6* RS232 serial ports
-
Overview
● 3.5＂ SBC with Intel® Apollo Lake platform on-board SoC● One SO-DIMM DDR3L 1867/1600MHz support up to system maximum 8GB● Triple displays with 1 x DP++, 1 x VGA / 1 x iDP, 1 x LVDS selection● High speed I/O interface for USB 3.0, SATA 6Gb/s● PCIe Mini with mSATA support -
Overview
● 3.5” SBC with Intel® 7th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request)● Triple display with VGA/iDP, HDMI and LVDS selection● Two PCIe Mini with mSATA/SIM card slot support● Intel® GbE LAN with Intel® AMT 11.0 supported● IEI One Key Recovery solution allows you to create rapid OS backup and recovery -
Overview
● 3.5” SBC with Intel® 6th Generation ULT processor supports DDR4 SO-DIMM (on-board memory support by request)● Triple display with VGA/iDP, HDMI and LVDS selection● Two PCIe Mini with mSATA/SIM card slot support● Intel® GbE LAN with Intel® AMT 11.0 supported● IEI One Key Recovery solution allows you to create rapid OS backup and recovery -
Overview
● 3.5"" SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC
● Triple independent display support
● 1.35V DDR3L 1333/1600 MHz SDRAM up to 8 GB
● COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA and Audio support
● Two full-size PCIe Mini slots (one with SIM holder for WLAN/WWAN expansion)
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery -
Overview
● 3.5” SBC supports Intel® 22nm Atom™ on-board SoC
● Dual independent display support
● On-board 2 GB/4 GB 1066/1333 MHz DDR3L memory
● COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA and Audio support
● Supports -40°C ~ 85°C
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery -
Overview
● 3.5 form fator with 4th/5th generation Intel® ULT SoC supports dual-channel DDR3L DIMMs
● 12V only single voltage design with AT/ATX mode support
● 18/24-bit dual-channel LVDS support
● Support triple independent display via LVDS, VGA and iDP
● Support PCIe Mini card slot for mSATA, 3G card, wireless card and DOM
