● EPIC form fator with Intel® Atom™ dual core D2550 1.86GHz/N2600 1.6GHz proccessor supporting DDR3 memory
● Dual display support by dual VGA and 18/24-bit single-channel LVDS
● 1066/800HMz DDR3 SO-DIMM supports up to 4 GB
● Easy assembly heat spreader for thermal management
● Wide power voltage range supports 9V ~ 28V power input
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● EPIC SBC with Intel® Atom™ D525/D425/N455 proccessor
● 800 MHz DDR3 SDRAM supported (system max. 2 GB)
● Support VGA and 18-bit single-channel LVDS with dual display
● Support PCI-104 and PCIe Mini card slot
● Support five COM, eight USB, two SATA 3Gb/s and one CF Type II socket
● TPM V1.2 hardware security function support by TPM module
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● EPIC SBC with Intel® Atom™ D525/D425/N455 proccessor and DDR3 solution
● 12V only single voltage design for AT/ATX mode
● Support dual LVDS
● Support PCI-104 and PCIe Mini card slot
● Support five COM, eight USB, two SATA 3Gb/s and one CF Type II socket
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● EPIC form factor AMD LX800 processor embedded board with RoHS compliant
● DDR 400 MHz SO-DIMM SDRAM up to 1 GB
● VGA, 24-bit TTL, and 18-bit single-channel LVDS
● SATA RAID 0, 1, JBOD function support
● Complete I/O support with two SATA, IDE, PC/104-Plus and four USB 2.0
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● 1.6 GHz Intel® Atom™ N270 CPU with ultra low voltage fanless support
● Single 12V power input, 5V output for SATA device
● Dual display supported by VGA+LVDS, VGA+TTL
● Support four COM, six USB, two SATA and CF Type II socket
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● Intel® Atom™ processor N270 1.6GHz CPU for ultra low voltage fanless support
● Single 12V power input, 5V output for SATA device
● Dual LVDS supports dual independent display
● Support four COM, six USB, two SATA
● Support PCIe Mini card, PCI-104 for expansion
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

● Support Intel® Core™2 Duo, Core™ Duo/Solo processor with 667 MHz FSB
● VGA integrated in Intel® 945GME supports 1080i HDTV-out, 18/24-bit dual-channel LVDS
● DDR2 667/533/400 MHz SO-DIMM socket supports up to 2 GB
● Dual Broadcom BCM5787M PCIe GbE chipset
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

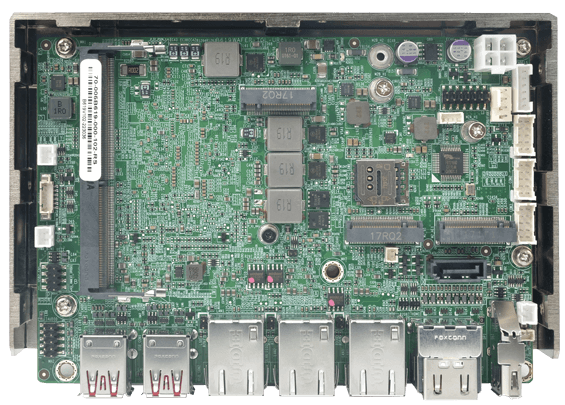

1. 3.5＂ SBC with Intel® Tiger Lake-UP3 on board SOC processor, support SO-DIMM DDR4-3200 memory

2. Support Quadruple independent display: 2 x HDMI™ 1.4, 1 x DP 1.4, 1 x iDPM

3. High-speed I/O interface: 4 x USB 3.2 gen 2 (10Gb/s), SATA (6Gb/s)

4. Support three Intel® I225V/I226V 2.5GbE network port

5. Support M.2 A Key, B key extension

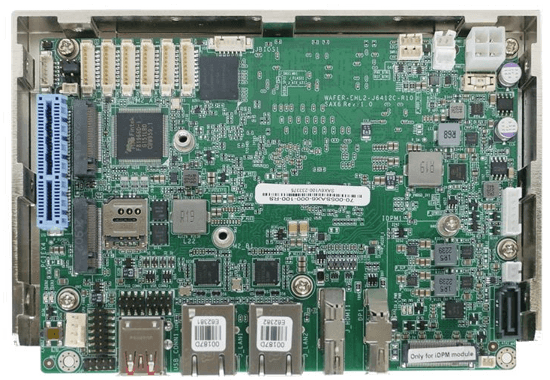

» 3.5” SBC supports Intel® Celeron® J6412 on-board SoC

» Support Triple independent display via HDMI™, DP, iDPM

» Support Dual Intel® 2.5GbE

» Support one PCIe Gen3 x4 slot,M.2 A key, M.2 B key expansions

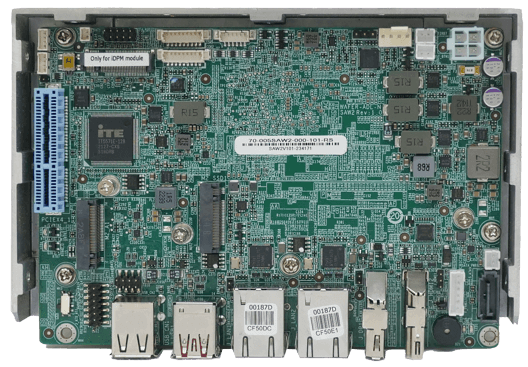

» Support 12th/13th Intel® Alder Lake-N/Amston Lake on board SoC

» Support on-board LPDDR5x 8GB memory, up to 16GB

» Support triple independent display via HDMI™, DP and iDPM slot

» Support PCIe x4 (x2 signal), M.2 M key and M.2 A key expansion

» Support two 2.5GbE LAN with I225V/I226V
